DATASHEET · EVERET EVZ405N
EVZ405NDatasheet
PROFESSIONAL 4K POV NDI|HX2 SRT BOX CAMERA

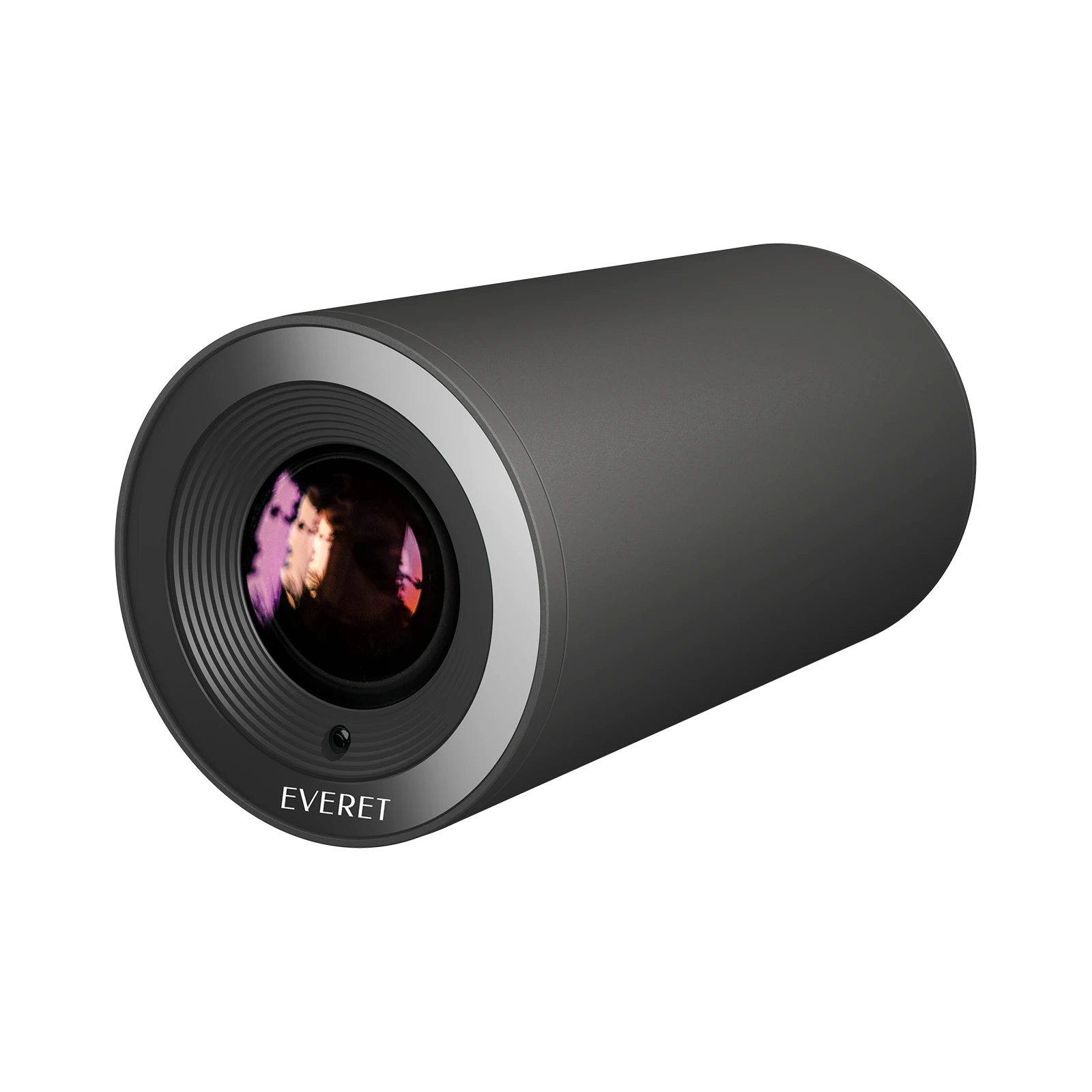

The EVERET EVZ405N is a professional 4K Ultra HD POV Box Camera with NDI|HX2 and SRT support, 5x optical zoom and an 85° field of view. Simultaneous 3G-SDI and 4K NDI outputs, audio line-in and PoE support simplify integration for enterprise live streaming, events and use alongside PTZ cameras.
Features:
- Sony IMX247 1/2.5 inch 8.5 MP CMOS Sensor
- 5x optical zoom
- 85° field of view
- NDI®|HX2 low-bandwidth support
- 3840 × 2160 30fps Ultra HD video
- 4K IP streaming via RTSP / RTMP / SRT / NDI®|HX2
- Simultaneous dual output: NDI® and 3G-SDI (SDI Level A and B)
- Audio input via 3.5mm Line-in
- Power over Ethernet (PoE): video, control and power over one CAT5/6 cable
- Flexible mounting options with wall mount included
- 5 year warranty
Product specifications
| Camera | EVZ405N |
|---|---|
| Camera | |
| Model | EVZ405N |
| Sensor | Sony IMX247 1/2.5 inch 8.5 MP CMOS Sensor |
| Color Space | 8bit RGB 4:4:4; ISP RAW (12bit) |
| Video | |
| Video Interface | 3G-SDI* / RJ45 (IP) |
| Video Encoding | H.264/H.265 |
| Streaming Protocols | NDI®|HX2 / SRT / RTMP / RTSP |
| Bitrate Control | Variable or Constant |
| Video Bitrate | 1024Kbps ~ 51200Kbps |
| Audio | |
| Interface | 3.5mm Line-in |
| Sample Rate | AAC: 22050Hz / 44100Hz LPCM: 11025Hz / 22050Hz / 44100Hz |
| AAC Bitrate | 32000Kbps – 128000Kbps |
| Volume | 1-100 |
| Video Format | |
| 3G-SDI | 1920x1080P60/50/30/25/59.94/29.97/24 1920x1080I60/50/59.94 1280x720P60/50/30/25/59.94/29.97 |
| NDI®|HX2 / SRT / RTMP / RTSP | Main Stream: 3840x2160@15~30 1920x1080@15~30 1280x720@15~30 1024x576@15~30 Sub Stream: 1280x720@15~30 1024x576@15~30 640x360@15~30 |
| Lens | |
| Optical Zoom | 5x |
| Digital Zoom | 4x |
| Aperture | F1. 8(Wide) – F26.61(Tele) |
| Focal Length | f=3.1 ～ 15.5mm |
| Horizontal Viewing Angle | 85° (Wide) - 6.3°(Tele) |
| Vertical Viewing Angle | 49.22° (Wide) - 15.29 (Tele) |
| Diagonal Viewing Angle | 86.13° (Wide) - 30.27° (Tele) |
| Control | |
| Presets | IR Remote : 10 WebUI: 128 EVKB200N: 128 Serial: 128 |
| Network (RJ45) | HTTP / ONVIF / VISCA over IP (TCP&UDP) / HTML5 (WebUI) |
| Serial | RS232 / RS422 / RS485 / PELCO P/D |
| IR Remote | Yes |
| VISCA over IP Port | 52381 |
| Network | |
| Default IP | 192.168.1.188 |
| Port Speed | 1 Gb/s |
| PoE | POE+(IEEE802.3at) |
| DHCP | Yes |
| Multicast | Yes |
| HTTP Port | 80 |
| RTSP Port | 554 |
| RTSP Encrypt | Not supported |
| General | |
| Environment | Indoor |
| Operating Temperature | -10 ℃ ~50 ℃ |
| Operating Humidity | ≤ 80% |
| Power Input | DC12V/POE+(IEEE802.3at) |
| Power Consumption | PoE+ : 9W DC in: 9W |
| Dimensions (LxWxH) | 168.8mm × 80mm × 80mm |
| Weight | 0.65KG |
| EAN | 8720387387069 |
| Warranty | 5 years |
*3G-SDI supports Level A and B.
