DATASHEET · EVERET EVZ230
EVZ230Datasheet
FHD POV NDI Box Camera 30x

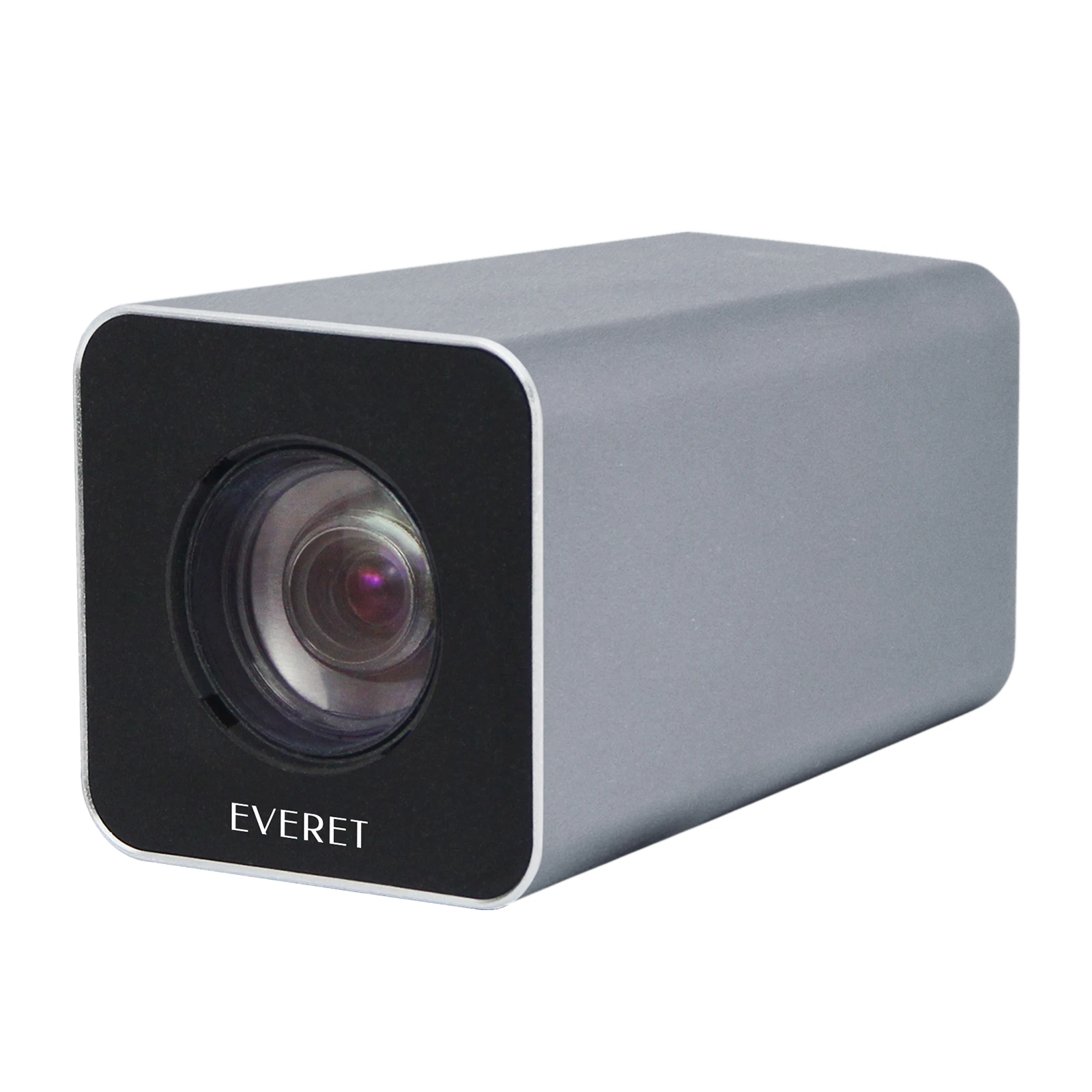

The EVERET EVZ230 is a Full HD POV Box Camera with NDI|HX2, HDMI and 3G-SDI output, audio line-in, 30x optical zoom and a 65° field of view. PoE support provides video and power over one CAT5/6 cable for simplified installation.
Features:
- Sensor: 1/2.8 ″ Exmor CMOS Sensor 3.7 Megapixel
- Optical Zoom: 30x
- Field of View: 65°
- Video Capture: up to 1080p60
- Outputs: NDI®, HDMI and SDI with SDI level A and B support
- NDI®|HX2: low-bandwidth support
- IP Streaming: RTSP / RTMP / RTMPS / NDI®|HX2
- Audio Input: 3.5mm Line-in / Mic-in
- Power over Ethernet (PoE): video and power supply over one CAT5/6 cable
- Warranty: 5 years
Product specifications
| Camera | EVZ230 |
|---|---|
| Camera | |
| Model | EVZ230 |
| Sensor | 1/2.8 ″ Exmor CMOS Sensor 3.7 Megapixel |
| Video | |
| Video Interface | 3G-SDI (Level A and B) / HDMI / RJ45 |
| Video Encoding | H.264 / H.265 / MJPEG |
| Streaming Protocols | NDI®|HX2 / RTSP / RTMP / RTMPS |
| Bitrate Control | Variable or Constant |
| Video Bitrate | 32Kbps ~ 16384Kbps |
| I-Frame Interval | 1 - 120 |
| Audio | |
| Interface | 3.5mm Line-in / Mic-in |
| Output | HDMI+SDI+IP |
| Encoding | G.711A / G.711U / AAC_LC |
| Input Gain | 1-10 |
| Video Format | |
| 3G-SDI | 1080P60/59.94/50/30/29.97/25 1080I60/59.94/50 720P60/59.94/50 |
| HDMI | 1080P60/59.94/50/30/29.97/25 1080I60/59.94/50 720P60/59.94/50 |
| NDI®|HX2 / RTMP / RTSP | 1080P60/59.94/50/30/29.97/25 1080I60/59.94/50 720P60/59.94/50/30/25 |
| Lens | |
| Optical Zoom | 30x |
| Aperture | F1. 3(Wide) – F4.8(Tele) |
| Focal Length | f=5.2mm ～ 148.4mm |
| Horizontal Viewing Angle | 65° (Wide) |
| Image | |
| Shutter Speed | 1/1 – 1/10000s |
| Iris | F1.6 – F32 |
| Minimum Object Distance | 30cm |
| Video S/N Ratio | >50dB |
| Minimum Illumination | 0.5Lux(Day) 0.1Lux(Night) 0.005Lux(DSS) |
| Focus | Auto / Manual / One Push |
| Focus Limit | 10cm, 30cm, 1m, 2m, 3m, 6m, 10m, 50m, inf |
| Gain Level | -3 ~ +28Db |
| HLC | Off, 1 ~ 15 |
| White Balance Modes | Auto / Manual / ATW / One Push / Indoor / Outdoor / 3000K / 4000K / 5000K / 6500K |
| Exposure Modes | Auto / Manual / Shutter Priority / Iris Priority / Brightness Priority |
| Gamma | Levels 0-6 |
| ICR | Auto / Day / Night |
| Anti-Flicker | OFF / 50Hz / 60Hz |
| 3D NR | OFF / Level 1-5 |
| 2D NR | Yes |
| Image Flip | Yes |
| Image Mirror | Yes |
| Back Light Compensation | Yes |
| Control | |
| Network (RJ45) | ONVIF / VISCA over IP (TCP&UDP) / HTML5 (WebUI) |
| Serial | RS485 / PELCO P/D |
| IR Remote | Yes |
| Presets | IR Remote: 10 WebUI: 128 EVKB200N: 128 Serial: 128 |
| Visca over IP Port | 52381 |
| Network | |
| Default IP | 192.168.1.162 |
| Port Speed | 1 Gb/s |
| POE | Yes |
| DHCP | Yes |
| Multicast | Yes |
| HTTP Port | 80 |
| RTSP Port | 554 |
| General | |
| Environment | Indoor |
| Operating Temperature | -10 ℃ ~50 ℃ |
| Storage Temperature | -10 ℃ ~60 ℃ |
| Power Input | JEITA type (DC IN 12V @1A) / POE |
| Power Consumption | PoE+: 12W DC in: 12W |
| Dimensions (LxWxH) | 70mm × 70mm × 116mm |
| Weight | 0.2KG |
| EAN (EVZ230) | 8720387387434 |
| Warranty | 5 years |
