DATASHEET · EVERET EVR230
EVR230Datasheet
RUGGED OUTDOOR PTZ CAMERA WITH SRT, 5G & 23x ZOOM

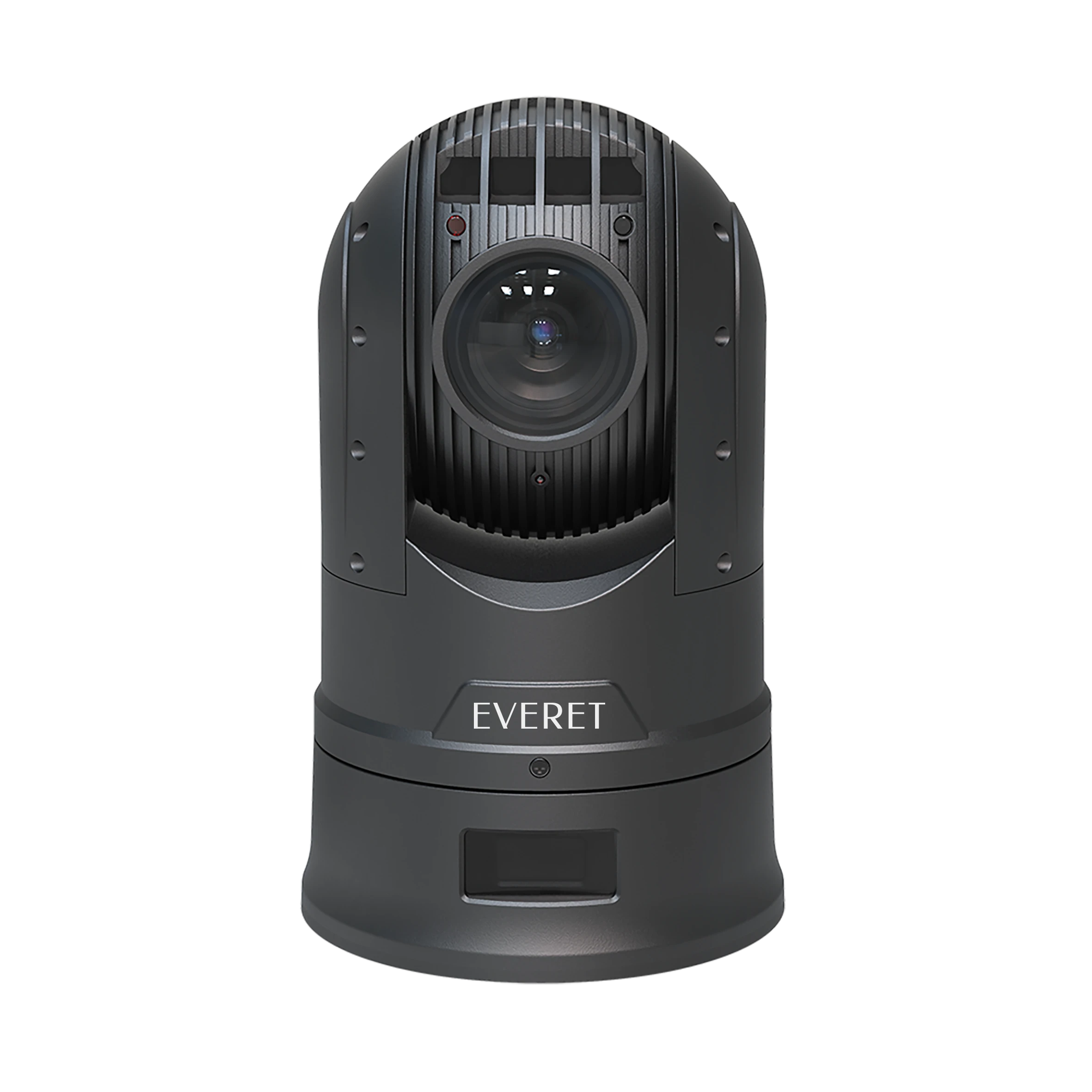

The Everet EVR230 is a portable IP66 PTZ camera for rapid deployment, combining 1080P video, SRT, 23x optical zoom and dual 5G wireless transmission. Built-in battery power, dual TF card storage, GPS positioning and two-way voice intercom support remote monitoring and emergency command applications.
Features:
- IP66 protection with an integrated, portable design
- 1080P video with a 1/2.8" IMX327 low-illumination CMOS sensor
- 23x optical zoom with infrared night vision up to 80 meters
- 360° continuous pan with presets, patrol, line scan and park function
- 3D positioning for monitoring a selected image area
- Dual 5G wireless video transmission with 3G / 4G support
- Dual TF card storage supporting up to 512G x2
- Two-way voice intercom
- Built-in lithium battery with 8 hours continuous operation
- Magnetic suction cup mounting for rapid deployment
- GPS positioning with a built-in module
- WiFi connectivity with AP hotspot support
- Optional AI functions including face capture and recognition, human detection, vehicle license plate video structuring and helmet recognition
Product specifications
| Camera | EVR230 |
|---|---|
| Camera | |
| Sensor | 1/2.8" low-illumination CMOS sensor (IMX327) |
| Resolution | 1080P (1920*1080 25/30 frames/sec) |
| System | Hisilicon Embedded System |
| Minimum Illumination | F1.6 (W), 50 IRE 0.05 lx (1/30s), IR-CUT On 0.005 lx (1/4s), IR-CUT Off |
| WDR | D WDR |
| Day/Night | ICR cut switch |
| Anti-Shaking | Supported |
| IR Distance | 80 meters |
| Lens | |
| Optical Zoom | 23x |
| Focal Length | 4.7~108 mm |
| Aperture | F1.6~F3.8 |
| Viewing Angle | Wide: 65.2°×56.9° Tele: 3.3°×2.9° |
| PTZ | |
| Pan Range | 360° continuous rotation |
| Tilt Range | -30°-90° |
| Rotation Speed | Pan: 100°/s Tilt: 60°/s |
| Presets | 255x |
| Patrol | 4x |
| Line Scan | Supported |
| Park Function | Supported |
| 3D Positioning | Supported |
| Video | |
| Video Input | Built-in 1CH video |
| Video Encoding | H.264/H.265 |
| Video Bitrate | 32Kbps-16Mbps |
| Frame Rate | 1-25fps(50Hz) 1-30fps(60Hz) |
| Dual Stream | Main Stream: 1080P; 960P; 720P Sub Stream: D1; VGA; CIF |
| Recording | |
| Format | ASF (with sound) |
| Resolution | D1/720P/1080P (default) |
| File Length | 10 minutes (default) |
| Frame Rate | 25/30 fps |
| Storage | Dual TF card, maximum 512G x2 |
| Snapshot Resolution | D1/720P/1080P (default) |
| Audio | |
| Audio Input | 1CH audio Pickup device connection via camera cable audio interface |
| Audio Encoding | G711 |
| Sampling Rate | 16K, 32K, 64K, 128K |
| Intercom | Two-way voice |
| Network | |
| Protocols | ONVIF / GB28181 |
| Configuration | Via network interface |
| Video Viewing | Web browser |
| Development Support | Low-level access and development assistance available |
| Wireless | |
| Cellular | Dual 5G Full Netcom (includes 3G / 4G) |
| SIM Cards | 2x |
| Private Network | Customized |
| Cellular Antenna | Built-in |
| WiFi Standard | IEEE 802.11b/g/n 2.4G |
| WiFi Distance | 15m |
| WiFi Antenna | Built-in |
| AP Hotspot | Supported |
| WiFi Settings | Basic function settings supported |
| Satellite Positioning | GPS (built-in module) |
| Interface | |
| Network | TCP / IP, 1x |
| Charging | Φ5.5*2.1 |
| Serial | RS485 + - |
| Audio | American Standard Headphone Jack |
| Alarm | Optional; not included as standard |
| Expansion | RS485 connection for temperature and humidity sensors, radar and other peripherals |
| OLED Display | 4G, WiFi and GPS connection status; signal strength |
| Power Button | 1x physical button; press for 3 seconds to switch on/off |
| Power | |
| Battery | Built-in DC12.6V 120Wh (9 x 18650 batteries) |
| Battery Position | Built-in at the bottom |
| Power Monitoring | High-precision |
| Power Consumption | Normal: 10W Maximum: Less than 20W (IR on) |
| Continuous Operation | 8 hours |
| Charging Input | DC12.6V/5A |
| Charging Time | Fast Charging: 4 hours Normal Charging: 8 hours |
| Operating Voltage | 9~36V |
| General | |
| Protection | IP66 |
| Operating Temperature | -30~60° |
| Operating Humidity | 0~95%, non-condensing |
| Dimensions | Φ132*229 mm |
| Weight | Net: 2.8Kg Packed with Safety Box: 6Kg |
| Mounting | Magnetic suction cup / tripod / wall bracket / ceiling / pole |
| Optional AI | Face capture and recognition Human detection Vehicle license plate video structuring Helmet recognition |
| Standard Accessories | |
| Interface Cable | 1x |
| Handle | 1x |
| Power Supply | 1x, DC12.6V 5A |
| Safety Box Case | 1x |
| Tripod Mounting Disk | 1x |
| Tripod | Aluminum alloy Total weight: 1.5kg Maximum load: 8kg |
