DATASHEET · EVERET EVPRO1W
EVPRO1WDatasheet

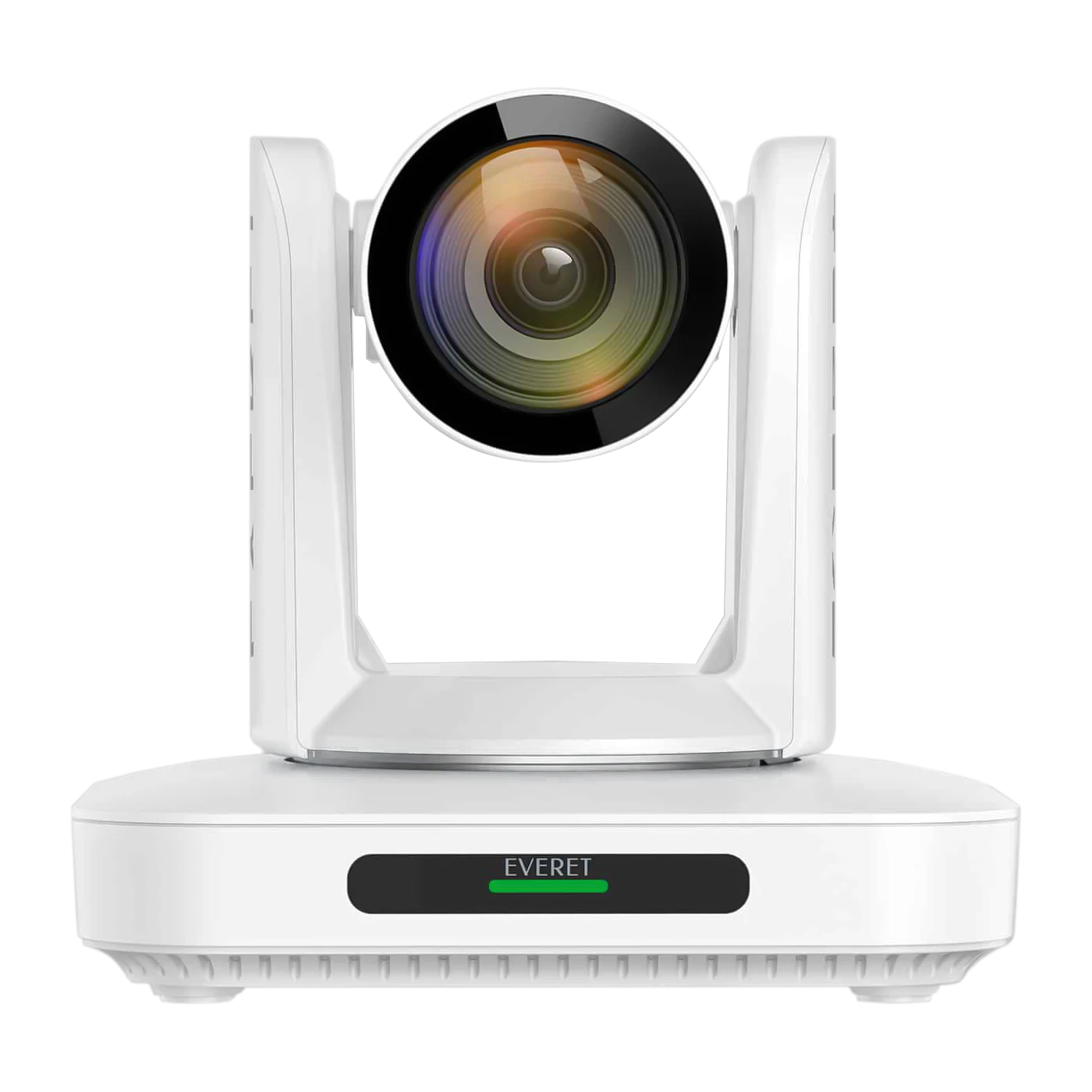

4K60 NDI PTZ Camera with 12x Zoom and Auto Tracking
The EVERET EVPRO1W is a UHD 4K60 NDI/HDMI/3G-SDI PTZ camera with 12x optical zoom, Auto Tracking and an 80.5° wide viewing angle. A Sony IMX415 1/2.8 inch 8.42 MP UHD CMOS sensor captures detailed images, including in low-light conditions.
Features:
- UHD 4KP60 capture with 12x optical zoom
- Sony IMX415 1/2.8 inch 8.42 MP UHD CMOS sensor
- Ultra-wide viewing angle: 80.5°
- Auto Tracking
- Ambarella ISP chipset
- NDI high-quality video with low latency, compatible with NDI version 5.5
- NDI®|HX2 (4K) and NDI®|HX3 (up to FHD) support
- Simultaneous Quad Output*: NDI®|HX, HDMI, UVC USB and 3G-SDI compatible with Blackmagic Design SDI Level-B
- Power over Ethernet (PoE): video, control and power over one CAT5/6 cable
- Automatic NDI® Tally support
- IR remote controller included
- Image flip for flexible mounting and upside-down installation
- OSD menu settings for IP address, streaming resolution and size
- 5 year warranty
Product specifications
| Camera | EVPRO1W |
|---|---|
| Camera | |
| Model | EVPRO1W |
| Sensor | Sony IMX415 1/2.8 inch 8.42 MP CMOS Sensor |
| Color Space | 8bit RGB 4:4:4; ISP RAW (12bit) |
| Video | |
| Video Interface | HDMI 2.0 / 3G-SDI* / USB 2.0 (type-c) / RJ45 (IP) *Level A and B |
| Video Encoding | H.264/H.265 |
| Streaming Protocols | NDI®|HX2 / NDI®|HX3** / RTMP / SRT / RTSP **max resolution 1080p60 |
| Bitrate Control | Variable or Constant |
| Video Bitrate | 1024Kbps ~ 61440Kbps |
| I-Frame Interval | 1 - 120 |
| Audio | |
| Interface | 3.5mm Line-in |
| Sample Rate | AAC: 16000Hz – 48000Hz LPCM: 11025Hz – 48000Hz |
| AAC Bitrate | 32000Kbps – 128000Kbps |
| Volume | 1-100 |
| Video Format | |
| HDMI | 3840x2160 P60/50/30/25 29.97/ 24/23.98 1920x1080P60/50/30/25/59.94/29.97/24/23.98 1920x1080I60/50/59.94 1280x720P60/50/30/25/59.94/29.97 |
| 3G-SDI | 1920x1080P60/50/30/25/59.94/29.97/24/23.98 1920x1080I60/50/59.94 1280x720P60/50/30/25/59.94/29.97 |
| USB 2.0 (type-C) | NV12: 1920*1080P5 1280*720P15 1024*576P25 800x480P30 YUYV: 1920*1080P5 1280*720P15 1024*576P25 800x448P30 MJPG: 3840x2160P30 1920x1080P60 1280x720P60 1024x576P60 800x448P60 H264 /H265: 3840x2160P30 1920x1080P60 1280x720P60 1024x576P60 800x448P60 |
| NDI®|HX3 | Main Stream: 1920x1080@15~60 1280x720@15~60 1024x276P60/50 Sub Stream: 640x360@30 |
| NDI®|HX2/RTMP/SRT/RTSP | Main Stream: 3840x2160@15~60 1920x1080@15~60 1280x720@15~60 1024x576@15~60 Sub Stream: 640x360@30 |
| Lens | |
| Optical Zoom | 12x |
| Digital Zoom | 4x |
| Aperture | F1.8(Wide)~F3.6(Tele) |
| Focal Length | f= 3.4mm~40.3 mm |
| Horizontal Viewing Angle | 80.5°(Wide)~7.6°(Tele) |
| Vertical Viewing Angle | 50.0°(Wide) ~ 4.4°(Tele) |
| Diagonal Viewing Angle | 88.9° (Wide) ~ Tele: 8.7° (Tele) |
| PTZ | |
| Speed by Zoom | ON/OFF |
| Pan/Tilt Range | Pan: -170° ~+170° Tilt: 30°~+90° |
| Pan/Tilt Rotation Speed | Pan: 0.1°~80°/s Tilt: 0.1°~60°/s |
| PTZ Freeze | Yes |
| Pan & Tilt Speed | 5 - 24 |
| Zoom Speed | 1 - 7 |
| Presets | IR Remote: 10 WebUI: 128 EVKB200N: 128 Serial: 128 |
| Save AE & WB in Preset | ON/OFF |
| Preset Pan/Tilt Speed | 5 - 24 |
| Preset Zoom Speed | 1 - 7 |
| Image | |
| Shutter Speed | 1/1 – 1/10000s |
| Iris | F1.8 - F14 |
| Minimum Object Distance | Wide: 1m ～ INF Tele: 1.5m ～ INF |
| Video S/N Ratio | >50dB |
| Minimum Illumination | 0.5lux (50 IRE Max AGC,1/30,F1.8) |
| Focus | Auto / Manual / One Push Auto Focus |
| Gain Level | 0-30Db |
| White Balance Modes | Auto / Manual / Auto Tracking / One Push / Indoor / Outdoor / Colour Temperature |
| Exposure Modes | Auto / Manual / Shutter Priority / Iris Priority / Brightness Priority |
| Wide Dynamic Range | Levels 1-6 |
| Gamma | Levels 0-8 |
| Anti-Flicker | OFF / 50Hz / 60Hz |
| 3D NR | OFF / Auto / Level 1-4 |
| 2D NR | Yes |
| Image Flip | Yes |
| Image Mirror | Yes |
| Backlight Compensation | Yes |
| Tally Light | Yes |
| Control | |
| Network (RJ45) | NDI / HTTP / ONVIF / VISCA over IP (TCP&UDP) / HTML5 (WebUI) |
| Serial | RS232 / RS422 / RS485 / PELCO P/D |
| IR Remote | Yes |
| Daisy Chain | Yes, up to 7 cameras |
| USB | USB2.0 (UVC1.1) |
| VISCA over IP Port | 52381 |
| NDI Port | 5961 |
| Network | |
| Default IP | 192.168.1.188 |
| Port Speed | 1 Gb/s |
| PoE | POE+(IEEE802.3at) |
| DHCP | Yes |
| Multicast | Yes |
| NDI Discovery Server | Yes |
| HTTP Port | 80 |
| RTSP Port | 554 |
| RTSP Encryption | Yes |
| General | |
| Environment | Indoor |
| Operating Temperature | -10 ℃ ~50 ℃ |
| Operating Humidity | ≤ 80% |
| Power Input | DC12V/POE+(IEEE802.3at) |
| Power Consumption | PoE+: 9W DC in: 9W |
| Dimensions (LxWxH) | 205mm × 165mm × 191.8mm |
| Weight | 1.5 KG |
| EAN (EVPRO1W Black) | 8720387387427 |
| EAN (EVPRO1W White) | 8720387387427 |
| Warranty | 5 years |
