DATASHEET · EVERET EVKB200N
EVKB200NDatasheet

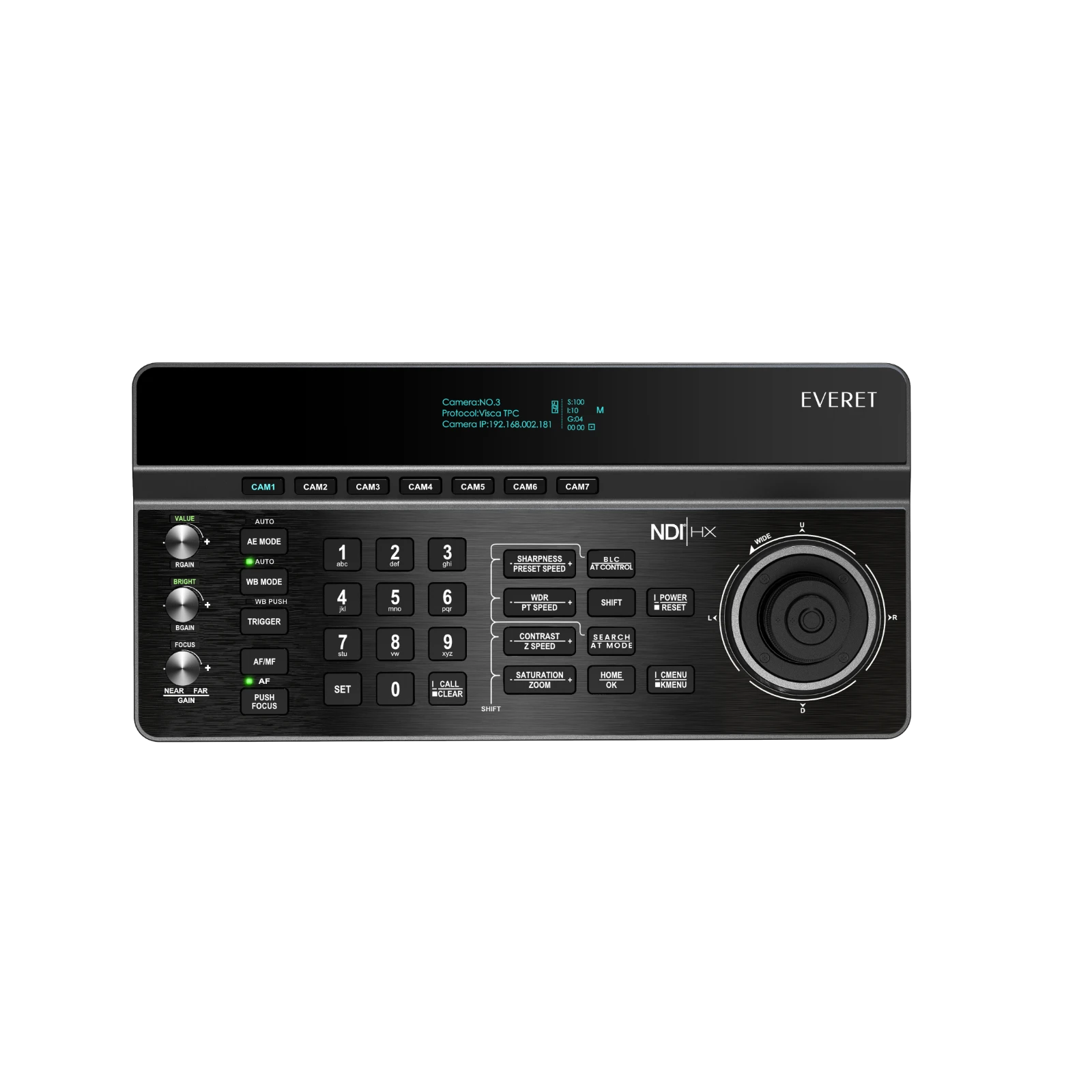

NDI® PTZ CAMERA CONTROLLER
The Everet EVKB200 is a professional NDI® camera controller keyboard with PoE for PTZ cameras. It supports simultaneous multi-brand camera control using NDI/VISCA over IP/VISCA/ONVIF/IP.
Features:
- NDI®, IP and serial communication
- VISCA/VISCA-over-IP/Pelco-P & D support
- 7 x shortcut channels, 128 total presets
- Power-over-Ethernet (PoE) support
- Multi-brand camera control with simultaneous protocol support
- OLED display with blue illumination
- Backlit buttons
- Rotary controls for camera aperture, shutter, brightness and white balance
- 12 VDC power supply included
Product specifications
| Controller | EVKB200N |
|---|---|
| Control | |
| Model | EVKB200N |
| Display | 3.12" OLED screen, blue light, 256 × 64 pixels |
| Pan & Tilt Reverse | Yes |
| Max Camera Control | NDI / IP: 7 Visca / RS232 / RS422 / RS485: 7 PELCO-P/D: 255 |
| Control Protocols | NDI® / NDI®|HX / VISCA serial, VISCA over IP, VISCA TCP, VISCA UDP, ONVIF, PELCO-P, PELCO-D |
| Network | |
| Web Interface | Yes |
| DHCP | Yes |
| PoE | PoE （ IEEE802.3af ） |
| Interface | |
| Control Interface | 3.5mm Line-in |
| RJ45 | Ethernet port, PoE （ IEEE802.3af ） |
| RS232 | DB9 male connector |
| RS422 | 3.81 spacing terminal, T＋, T－, R＋, R－ |
| RS485 | 3.81 spacing terminal, T＋, T－ |
| Buttons & Knobs | |
| Camera Selection | Yes, (7) |
| Home | Yes, return to default PTZ position |
| Exposure Mode | Yes |
| White Balance Mode | Yes |
| Red, Blue, Gain | Yes |
| Iris | Yes |
| Shutter | Yes |
| Brightness | Yes |
| One Push | Yes |
| Focus | Yes |
| Auto/Manual Focus | Yes |
| Presets | Yes (128) |
| Sharpness | Yes |
| WDR | Yes |
| Contrast | Yes |
| Saturation | Yes |
| Backlight Compensation | Yes |
| Preset Speed | Yes |
| Pan Tilt Speed | Yes |
| Zoom Speed | Yes |
| Zoom | Yes |
| Power/Reset | Yes |
| General | |
| Power Input | DC12V 1A |
| Power Consumption | 2W |
| Operating Temperature | -10 ℃ ~50 ℃ |
| Operating Humidity | ≤ 80% |
| Storage Temperature | -20 ℃ ~60 ℃ |
| Storage Humidity | ≤ 90% |
| Dimensions | 320.5mm × 156.5mm × 118mm |
| Weight | 1.05 KG |
| Included Power Supply | 12 VDC |
| EAN (EVKB200) | 8720387387243 |
