DATASHEET · EVERET EVKB-MINI
EVKB-MINIDatasheet
NDI PTZ CAMERA CONTROLLER

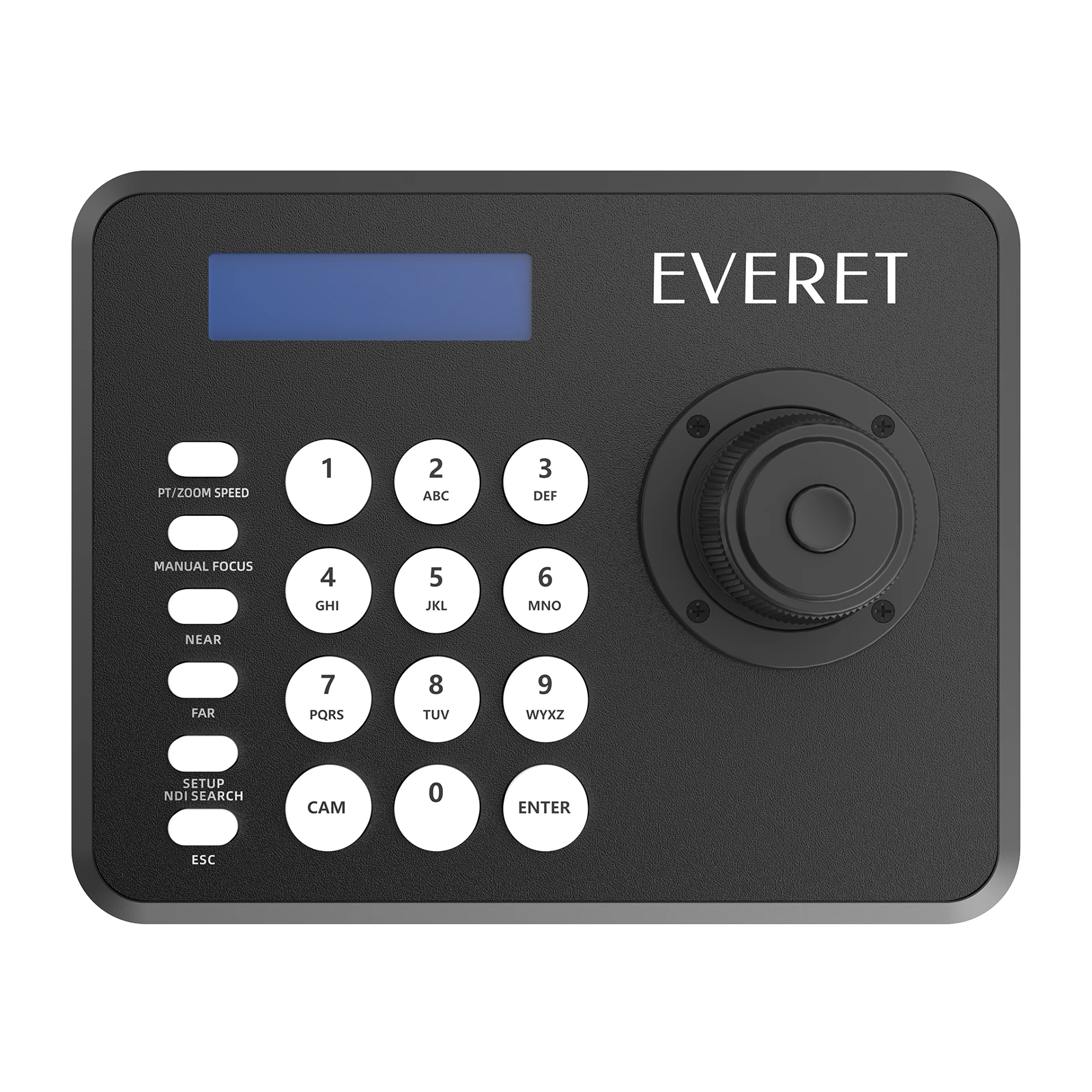

The Everet EVKB-MINI is a Mini 4D PTZ Controller for video conferencing cameras. It combines network and analog control with a variable-speed four-dimensional joystick, an LCD display and a built-in web server for configuration.
Features:
- Control modes: network and analog, with an independent IP address in network mode
- Protocol support: VISCA / VISCA iP / PELCO-D/P / ONVIF / NDI
- Four-dimensional joystick for variable-speed camera rotation and lens zoom control
- Touch buttons with switchable button tone
- Industrial-grade LCD screen for clear character display
- Web server for controller configuration
- PoE support for standard network power supply
- Sheet-metal upper shell with anti-scratch PC matte film
- Die-cast aluminum bottom shell with powder-coated finish
Product specifications
| Controller | EVKB-MINI |
|---|---|
| Control | |
| Control Modes | Network / Analog |
| Protocols | VISCA / VISCA iP / PELCO-D/P / ONVIF / NDI |
| Controls | Touch buttons Variable-speed four-dimensional joystick |
| Joystick Functions | Camera rotation / Lens zoom / Speed control |
| Button Tone | On / Off |
| Network | |
| IP Address | Independent IP address in network mode |
| Configuration | Built-in web server |
| PoE | Standard PoE power supply |
| Interface | |
| Output Interfaces | RS422 / RS232 / RJ45 |
| Display | TFT LCD 128*32 |
| General | |
| Model | EVKB-MINI |
| Main Chipset | GOKE RNCFV200 |
| Operating System | Linux |
| Housing | Upper Shell: Sheet metal with anti-scratch PC matte film Bottom Shell: Powder-coated die-cast aluminum |
| Power Supply | DC12V-2A |
| Power Consumption | ≤ 2W |
| Operating Temperature | -10 ℃ ~55 ℃ / 14 ° F ~131 ° F |
| Operating Humidity | 20% ~80% No condensation |
| Storage Temperature | -10 ℃ ~55 ℃ / 14 ° F ~131 ° F |
| Storage Humidity | 0% ~90% No condensation |
| Inner Package Size | 228*208*142 (unit: mm) |
| Carton Size | 442*432*246 (unit: mm) /6 units |
| Net Weight | 905g/ pc |
