DATASHEET · EVERET EVC312
EVC312Datasheet

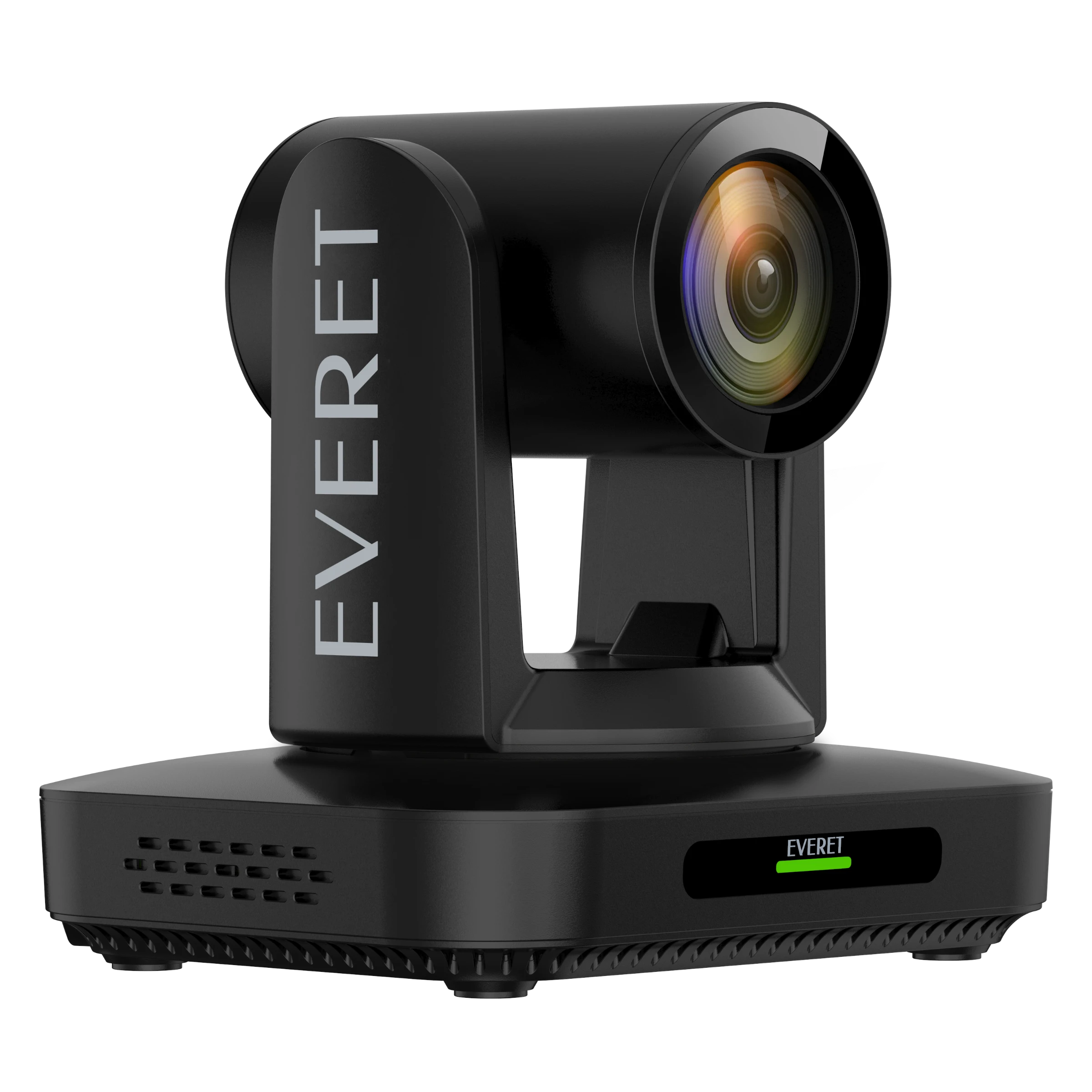

Full HD HDMI USB PTZ Camera 12x Optical Zoom
The EVERET EVC312 is a Full HD PTZ conference camera with a Panasonic 1/2.8 inch 2.4MP CMOS sensor and 12x optical zoom. HDMI, USB3.0 and IP support simultaneous output. Plug-and-play operation and an OSD menu simplify setup.
Features:
- Optical Zoom: 12x
- Full HD Video: 1080p60 over HDMI and USB3.0
- Simultaneous Output: IP, HDMI and USB3.0
- PTZ: Smooth pan-tilt-zoom operation
- Power over Ethernet (PoE): Video, control and power over one CAT5/6 cable
- Control: IP Visca, Serial Visca and Pelco-P/D; IP Visca over TCP/UDP
- IR Remote: Controller supplied
- Mounting: Image flip supports upside-down installation
- OSD Menu: Set IP address, streaming resolution and size
- Warranty: 5 years
Product specifications
| Camera | EVC312 |
|---|---|
| Camera | |
| Sensor | Panasonic 1/2.8 inch 2.4MP CMOS sensor |
| Color Space | 8bit RGB 4:4:4; ISP RAW (12bit) |
| Video | |
| Video Interface | HDMI / USB 3.0 (type-B) / RJ45 (IP) |
| Video Encoding | H.264/H.265 |
| Streaming Protocols | RTMP / RTSP |
| Bitrate Control | Variable or Constant |
| Video Bitrate | 1024Kbps ~ 16384Kbps |
| I-Frame Interval | 3 - 120 |
| Video Format | |
| HDMI | 1920x1080P60/50/30/25/59.94/29.97/24/23.98 1920x1080I60/50/59.94 1280x720P60/50/30/25/59.94/29.97 |
| USB 3.0 (type-B) | USB3.0: 1920*1080P60/50/30/25 1280*720P60/50/30 USB 3.0 & USB 2.0: 1280*720P25 1024*576P30 USB 2.0: 960*540P30 640*360P30 512*288P30 |
| RTMP / RTSP | Main Stream: 1920x1080@15~60 1280x720@15~60 1024x576@15~60 Sub Stream: 1280*720@3~60 1024*576@3~60 640*360@3~60 |
| Lens | |
| Optical Zoom | 12x |
| Digital Zoom | 2x |
| Aperture | F1. 8(Wide) – F2.8(Tele) |
| Focal Length | f=3.92 ～ 47.32mm |
| Horizontal Viewing Angle | 72.5° (Wide) - 6.3°(Tele) |
| Vertical Viewing Angle | 42.72° (Wide) - 3.66 (Tele) |
| Diagonal Viewing Angle | 78.58° (Wide) - 7.42° (Tele) |
| PTZ | |
| Speed by Zoom | Yes |
| Pan/Tilt Range | Pan: -170° ~+170° Tilt: 30°~+90° |
| Pan/Tilt Rotation Speed | Pan: 0.1°~120°/s Tilt: 0.1°~80°/s |
| Pan & Tilt Speed | 5 - 24 |
| Zoom Speed | 1 - 7 |
| Presets | IR Remote : 10, WebUI: 128, EVKB200N: 128, Serial: 128 |
| Image | |
| Shutter Speed | 1/8 – 1/10000s |
| Iris | F1.8 - F14 |
| Minimum Object Distance | Wide: 1m ～ INF Tele: 1.5m ～ INF |
| Video S/N Ratio | >50dB |
| Minimum Illumination | 0.01 lux |
| Focus | Auto / Manual / One Push Auto Focus |
| Gain Level | 0-30Db |
| White Balance Modes | Auto/Indoor/Outdoor/Manual/One Push/ATW/ SON/ FL |
| Exposure Modes | Auto / Manual / Shutter Priority / Iris Priority / Brightness Priority |
| Wide Dynamic Range | Levels 1-6 |
| Gamma | Levels 0-8 |
| Anti-Flicker | OFF / 50Hz / 60Hz |
| 3D NR | OFF / Auto / Level 1-4 |
| 2D NR | Yes |
| Image Flip | Yes |
| Image Mirror | Yes |
| Backlight Compensation | Yes |
| Control | |
| Network (RJ45) | HTTP / ONVIF / VISCA over IP (TCP&UDP) / HTML5 (WebUI) |
| Serial | RS232 / RS422 / RS485 / PELCO P/D |
| IR Remote | Yes |
| Daisy Chain | Yes, up to 7 cameras |
| USB | USB3.0(UVC1.5), USB2.0(UVC1.1) |
| Visca over IP Port | 52381 |
| Network | |
| Default IP | 192.168.1.188 |
| Port Speed | 1 Gb/s |
| PoE | POE+(IEEE802.3at) |
| DHCP | Yes |
| Multicast | Yes |
| HTTP Port | 80 |
| RTSP Port | 554 |
| RTSP Encrypt | Yes |
| General | |
| Environment | Indoor |
| Operating Temperature | -10 ℃ ~50 ℃ |
| Operating Humidity | ≤ 80% |
| Power Input | DC12V/POE+(IEEE802.3at) |
| Power Consumption | PoE+ : 9W, DC in: 9W |
| Dimensions (LxWxH) | 220mm × 190mm × 173mm |
| Weight | 1.4 KG |
| EAN EVC312 | 8720387387380 |
| Warranty | 5 years |
